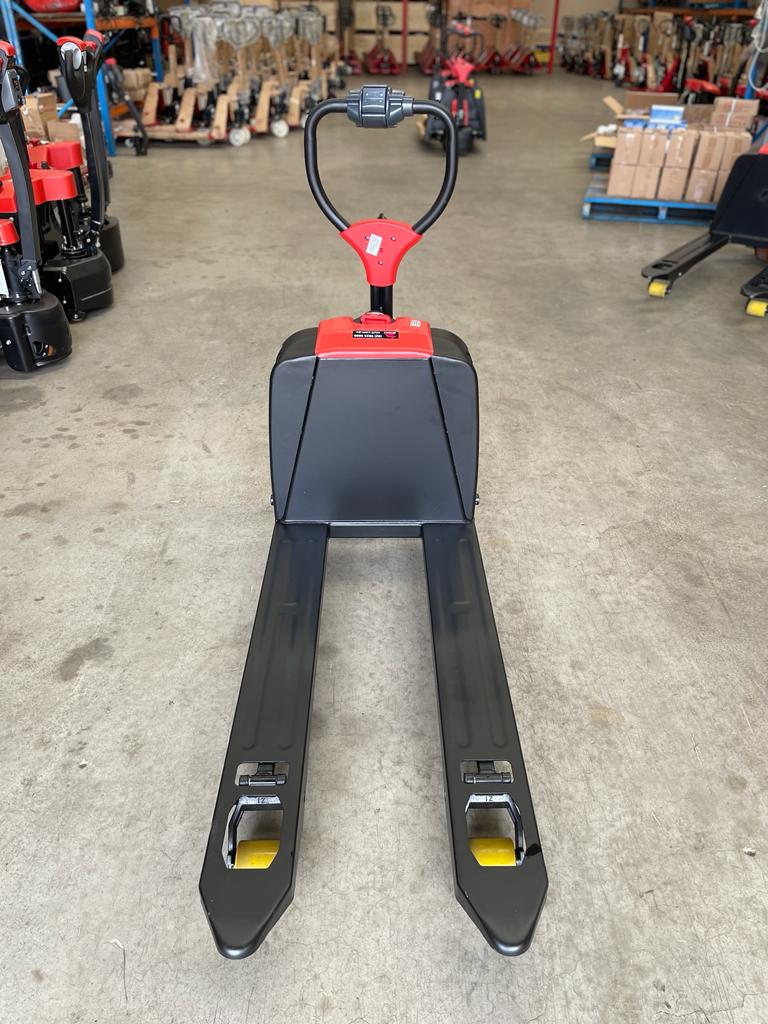

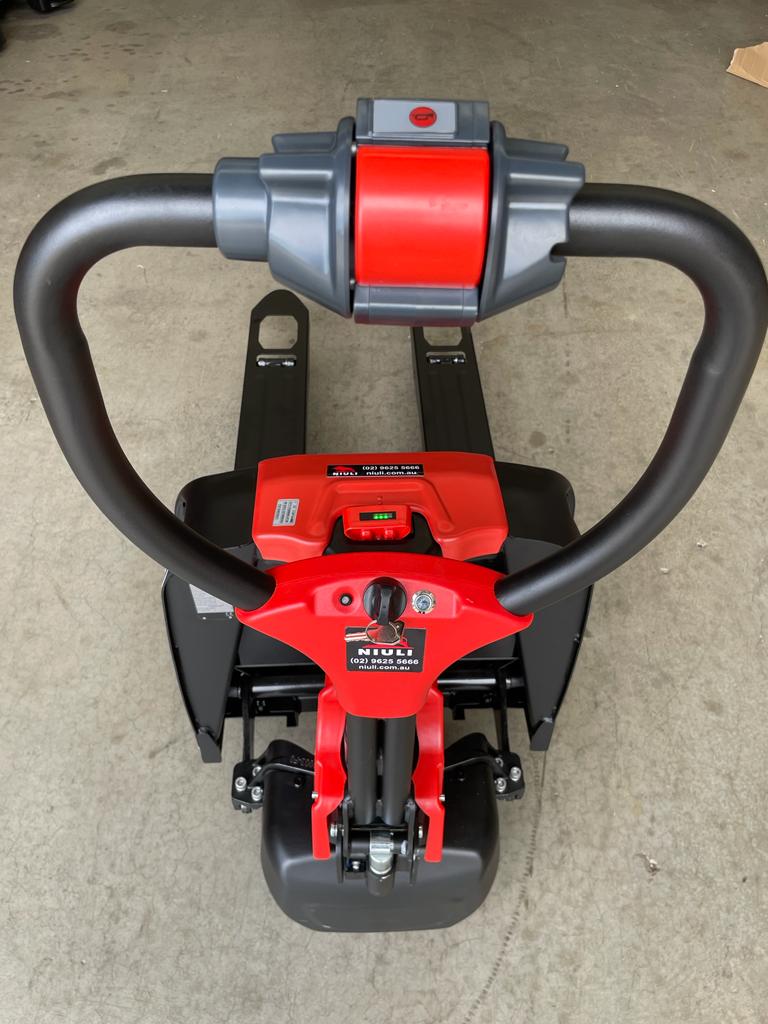

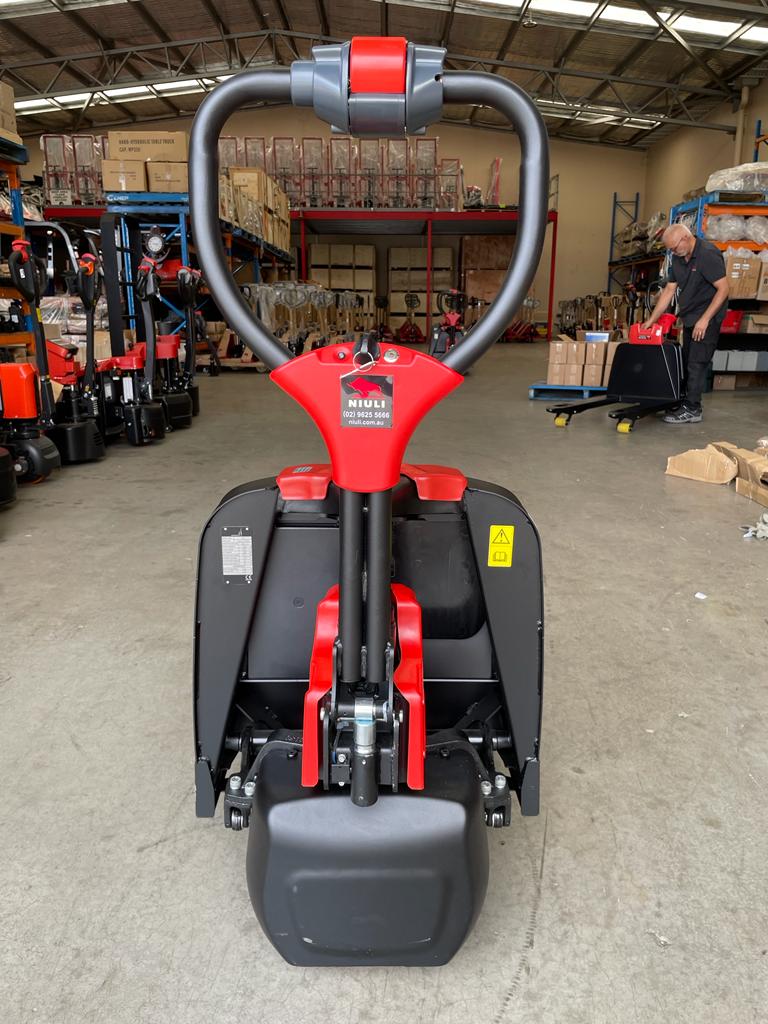

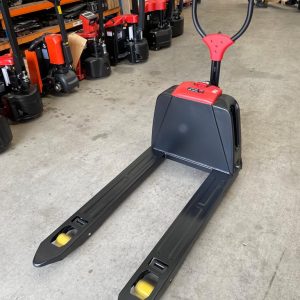

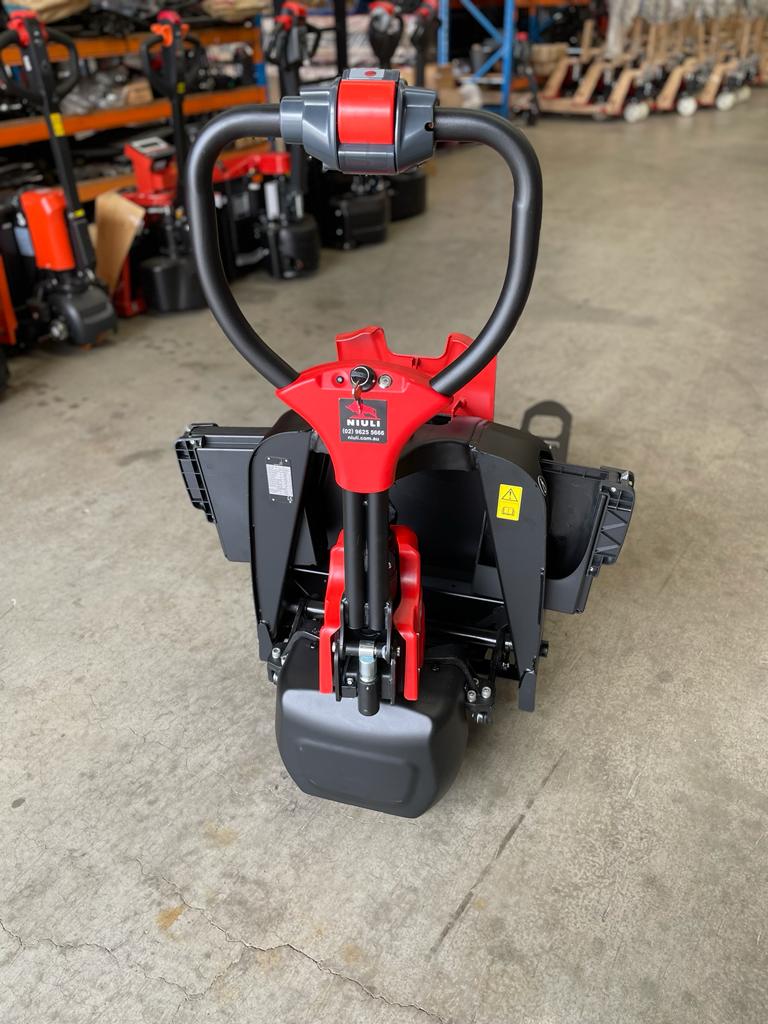

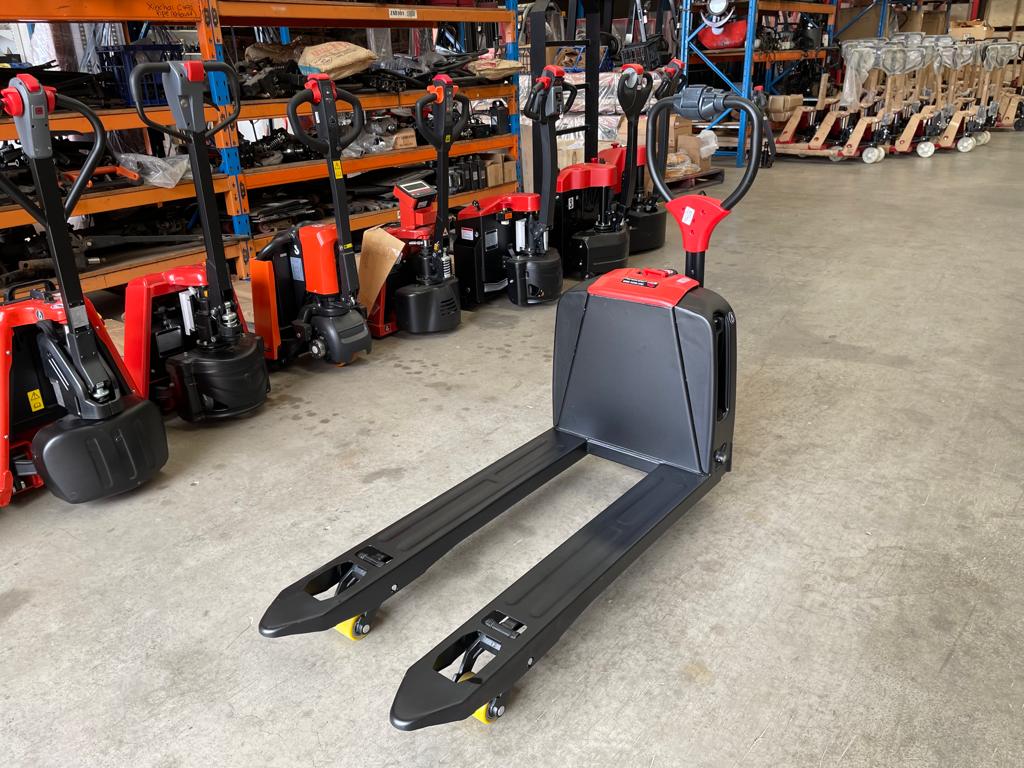

Name: PLS15 (F4) - Full Electric 1.5 Ton Narrow
SKU: 5193
Availability: InStock

Capacity Rating: 1500kgs
Ideal for trucks with external charger

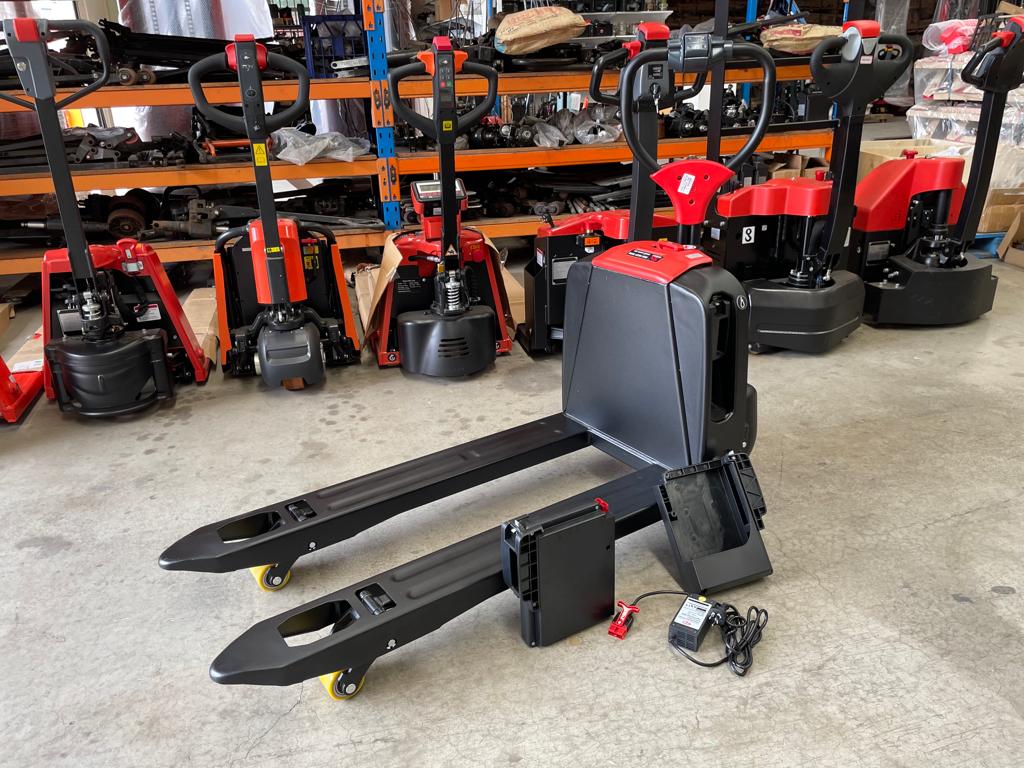

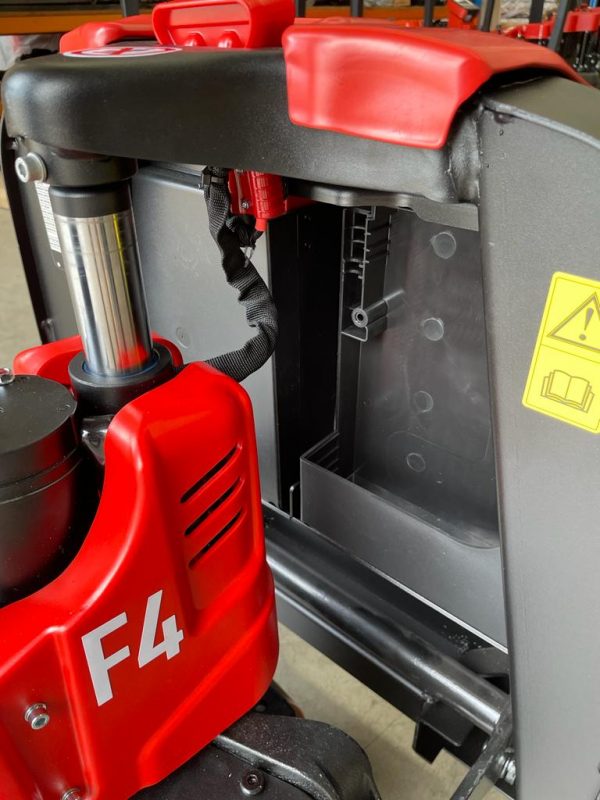

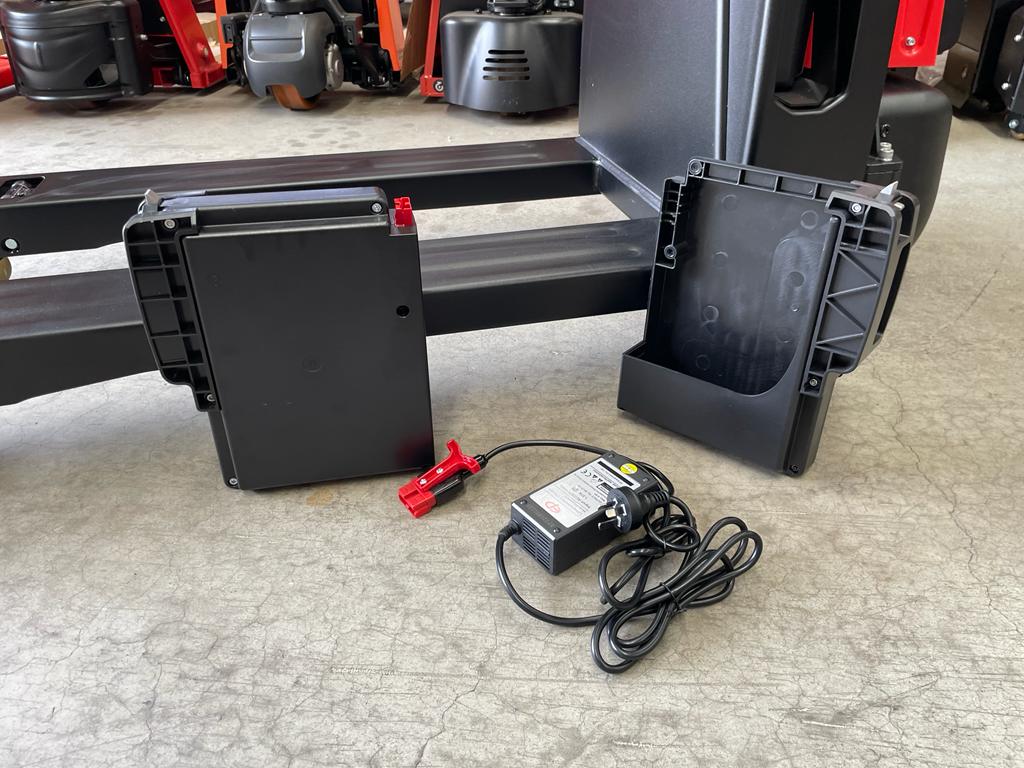

Option of extra battery, unit can carry 2 batteries (easy to switch between batteries)

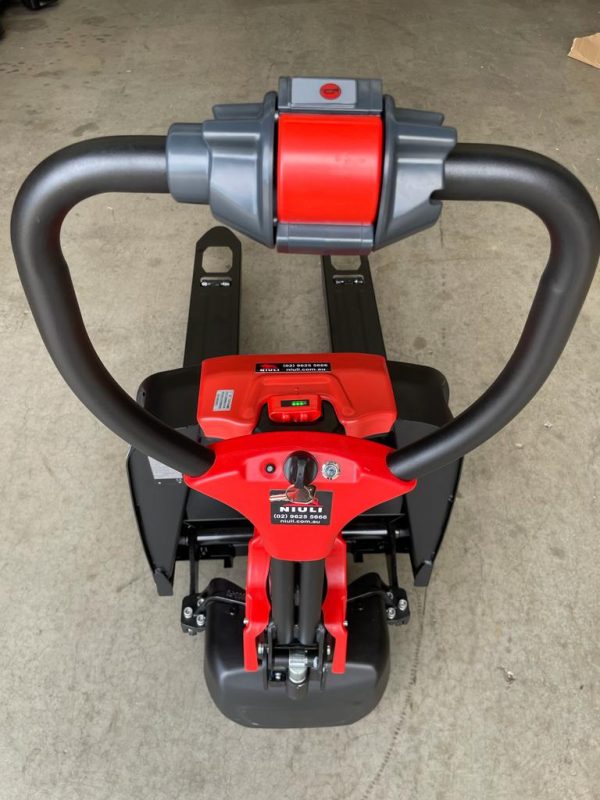

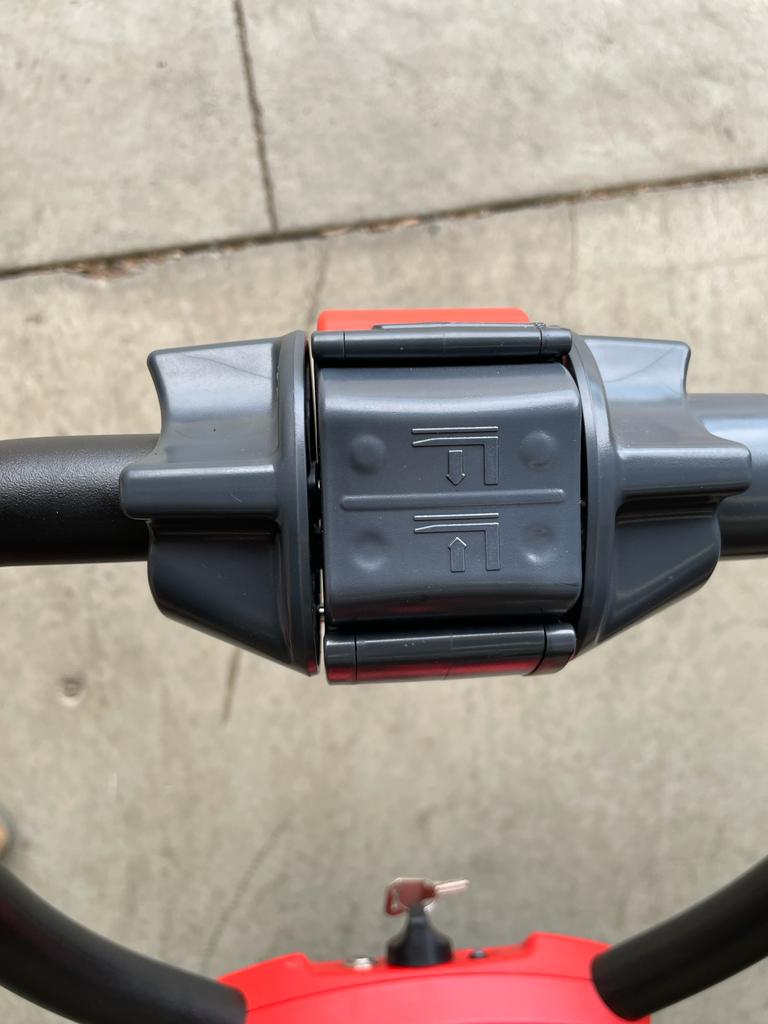

Electric forward/reverse, Lift/Drop

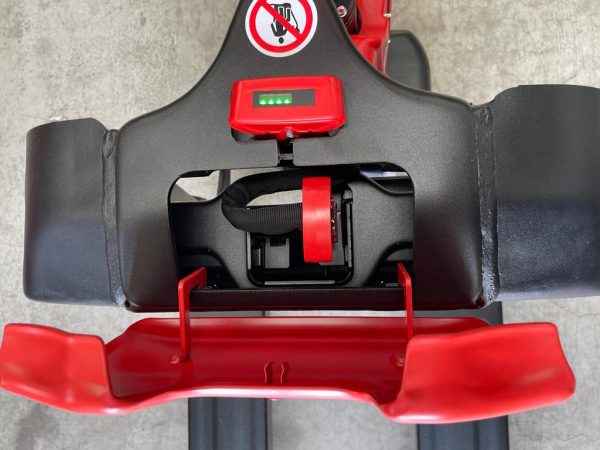

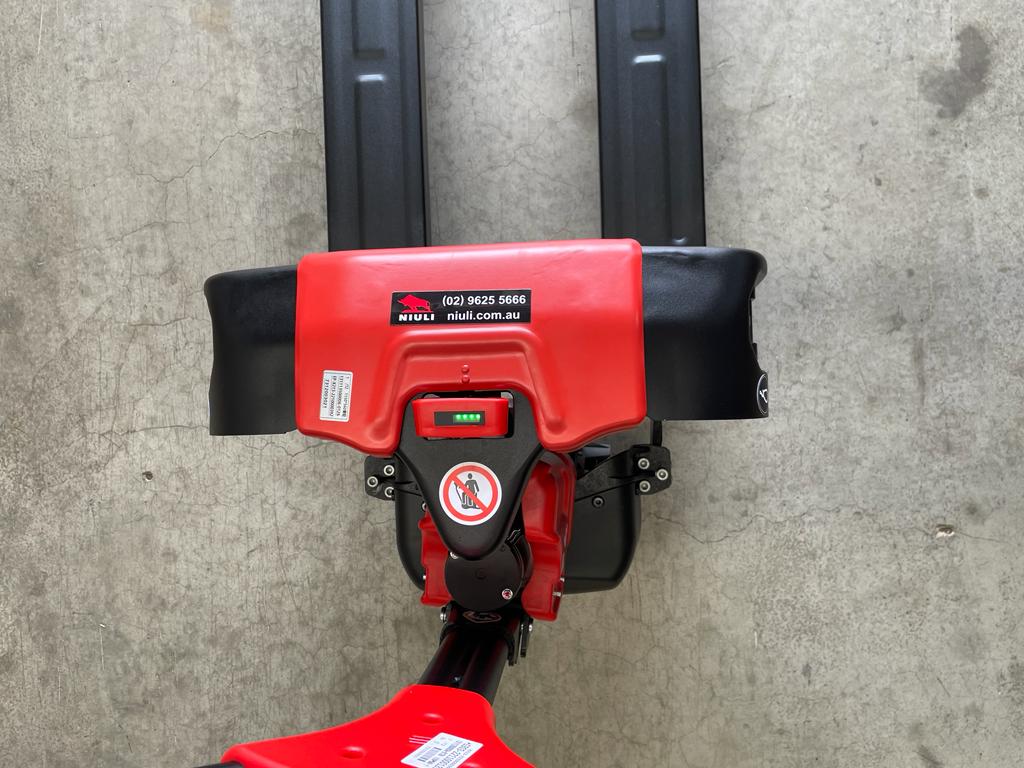

Lithium Ion battery (3kg) up to 3 hr work per charge – external or entrnal charging.
Emergency stop button, safety reverse feature, foot guard, horn
Polyurethane wheels for none marking, smooth drive and anti slip

RRP ~~$2,600+GST~~ – Now $1,800+GST ($1,980 inc. GST)
Optional: Rear balance wheels – $280+GST per set

* For Product Specs, please click “SPECS” next to “FEATURES” under picture above.

Load Centre – 600mm – Turning Radius: 1330mm
Distance from end of forks to last point of unit: 425mm
Drive Wheels: Ф210×70 – Loading Wheels: Ф80×60
Driving motor rating:0.75kw – Lift motor rating: 0.7kw

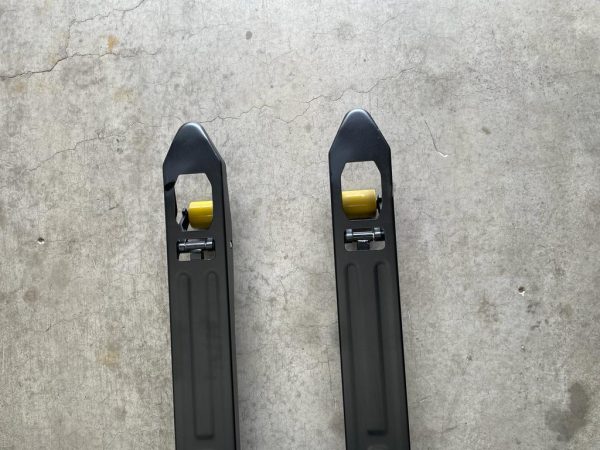

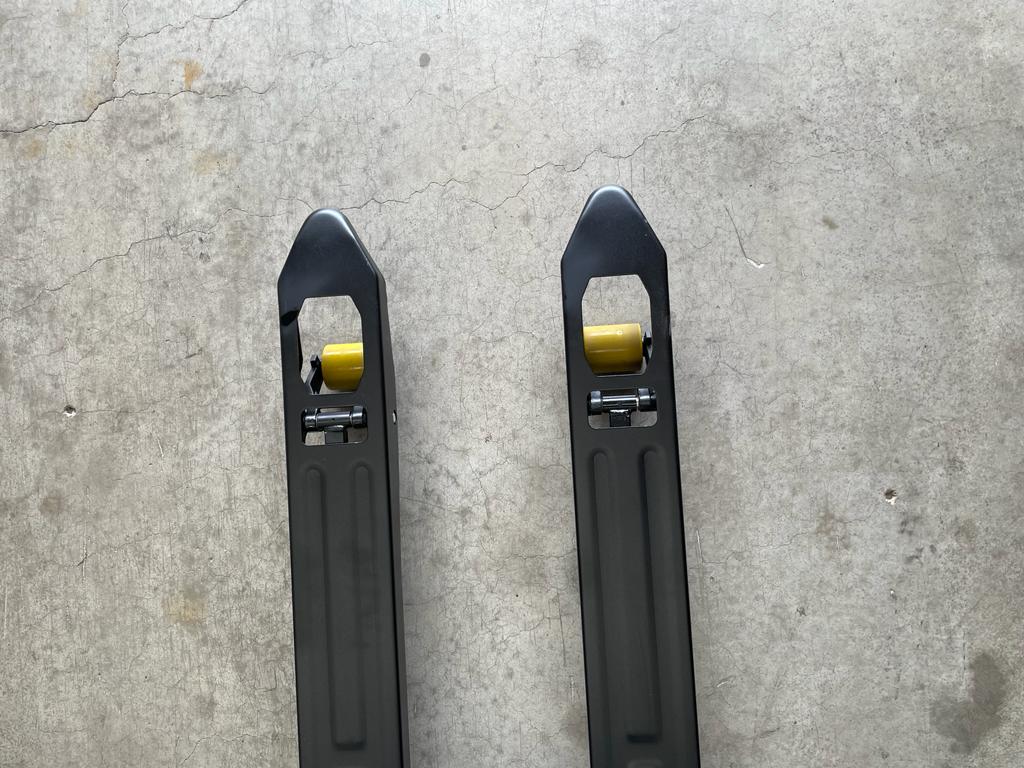

Fork Dimensions: 1150x150x50mm
Clearance between forks: 260mm
Min/Max fork height: 80mm / 190mm
Travel speed – laden/unladen km/ h 4/4.5
Max. gradeability – laden/unladen % 5/16
Electric-engine
Battery voltage/nominal
capacity V/Ah 24V/20Ah
Overall Dimensions – weight 115kg – 156(L) x 56(W) x 128(H) cm
Shipping Dimensions – Pallet – weight 145kg – 162 x 120 x 143 cm

PLS15 (F4) – Full Electric 1.5 Ton Narrow
