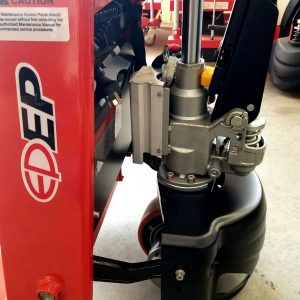

Name: PDE20 (LT20S 560mm) - Full Electric 2 Ton Narrow - With Scale
SKU: 4922
Availability: InStock

Capacity Rating: 2000kgs
Ideal for trucks with external charger and the option of extra battery
Full electric – forward, reverse, lift, and drop
Lithium Ion battery (2kg) up to 3 hr work per charge
Internal or external charging possible
Magnetic key power on
Emergency stop button, safety reverse feature, foot guard, horn
Polyurethane wheels for none marking, smooth drive and anti slip – single front

RRP ~~$4,800+GST~~ – Now $3,800+GST ($4,180 inc. GST)

* For Product Specs, please click “SPECS” next to “FEATURES” under picture above.

Load Capacity / rated load Q (t) 2.0
Load centre distance c (mm) 600
Load distance ,centre of drive axle to fork x (mm) 947
Wheelbase y (mm) 1189
Service weight kg 131
Axle loading, laden front/rear kg 626 / 1001 629 / 1002
Axle loading, unladen front/rear kg 99 / 28 102 / 29
Tires Polyurethane (PU)
Tire size,front Æ x w (mm) Æ 210×75
Tire size,rear Æ x w (mm) Æ 80×70(Æ 80×93)
Additional wheels(dimensions) Æ x w (mm) -/Æ 80×30
Wheels,number front/rear(x=driven wheels) (1x/ 4) 0r 1x +2/ 2(1x +2/ 4)
Tread, front b10 (mm) -/430
Tread, rear b11 (mm) 380 525
Lift h3 (mm) 115
Height of tiller in drive position min./ max. h14 (mm) 655 / 1160
Height, lowered h13 (mm) 80
Overall length l1 (mm) 1543
Length to face of forks l2 (mm) 393
Overall width b1 (mm) 685
Fork dimensions s/e/l (mm) 50 / 160 / 1150
Width Across Forks b5 (mm) 685
Ground clearance, centre of wheelbase m2 (mm) 30
Aisle width for pallets800X1200 lengthways (200mm safe distance) Ast (mm) 2013
Turning radius Wa (mm) 1340
Travel speed, laden/ unladen km/h 4.3/4.9
Lift speed, laden/ unladen m/s 0.015/0.022
Lowering speed, laden/ unladen m/s 0.05 / 0.026
Max. gradeability, laden/ unladen % 6 / 16
Service brake Electromagnetic
Drive motor rating S2 60min kW 0.75
Lift motor rating at S3 10% kW 0.50
Battery acc. to DIN 43531/ 35/ 36 A, B, C, no No
Battery voltage, nominal capacity K5 V / Ah 24 / 20
Energy consumption acc. to VDI cycle kWh/h 0.25
Type of drive control DC speed Control
Overall Dimensions – weight 131kg – 156(L) x 56(W) x 128(H) cm
Shipping Dimensions – Pallet – weight 161kg – 162 x 120 x 143 cm

PDE20 (LT20S 560mm) – Full Electric 2 Ton Narrow – With Scale
